T200 dual drone charging solution with a battery-swapping system
T200 is a widely compatible drone charging solution with a drone charging board and a drone battery swapping system, which is customizable and can be compatible with 2s-14s LiPo drones. Its potential is not limited to multi-rotor drones, but also cargo drones and VTOL drones. You can customize a package-swapping solution for cargo drones, the flexible robotic arm can easily do the swapping job, including drone payload, battery, and package. Meanwhile, grab a big VTOL drone and put it on the charging board for recharging or battery swapping is also available.
L200 VTOL cargo drone solution
Shenzhen Fengyi Technology Co., Ltd. (belongs to SF Express), works with Shenzhen HEISHA Technology Co., Ltd., has developed the L200 autonomous drone docking station for VTOL cargo drones.
F200 Fixed-wing drone charging station
F200 is a complete autonomous solution for launching and charging the fixed-wing drone. It uses a custom container as the drone charging base, too.

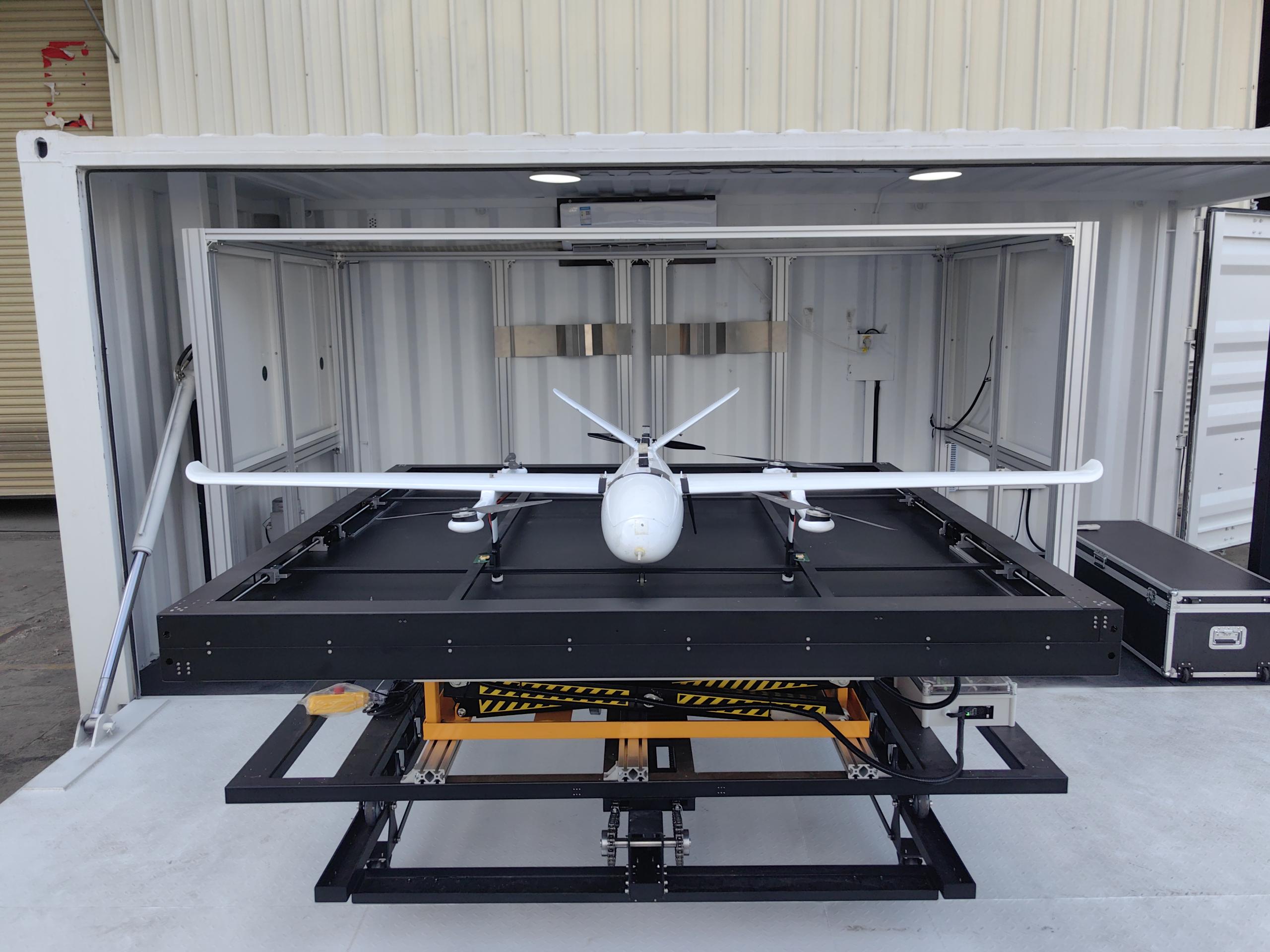

HEISHA V200 is an autonomous drone charging station for VTOL (vertical take-off and landing) aircraft. It has integrated the most advanced intelligent temperature controlling system, safe and widely compatible charging system, and self-diagnostic maintenance system. Most importantly, the container structure allows it to be transported easily without any detachment or installation. To be compatible with various VTOL drones, HEISHA opens all the hardware interfaces and offers custom to fit different drone types.
Extend your long inspection area
Using a T3 tower to control drones remotely works, too.
Charging safely and steadily
Anti-voltage and anti-reverse, voltage compatibility management module, and a complete sensor system are all adopted to assure the automated VTOL drone charging safety.
A troubleshooter
HEISHA V200 has solved three big problems of VTOL drone charging stations: cost, transportation, and transmission.
V200 has adopted the modified container to lower the cost and improve the flexibility of transportation and used the simplified modular structure inside the container for transmission stably.
Specifications
| Size | open: 6m*4.7m*2.6m close: 6m*2.45m*2.6m |
| Weight | 3.3T |
| IP rating | IP54 |
| Material | Aluminium alloy, steel |
| Input voltage | AC 220V |
| Output voltage | DC 52.7V |
| Working power | 3500W |
| Working temperature | -40~50 Celsius |
| Contained drone | 1 |
| Charging time | About 120 mins (based on drones) |
| Drone power supply method | Charging via wire |
| Protection | Overvoltage, overload, power-off protection |
| Sensors | Windspeed, rain gauge, temperature, humidity |
| Air conditioner | Voltage: AC220V Type: Inverter 2P |
| Network | Support ethernet, 4G |
V200 expansion version
(for monitoring and maintenance persons)
A weather station, a working table, and a big monitor.
