UAV Low Altitude Flight Solution

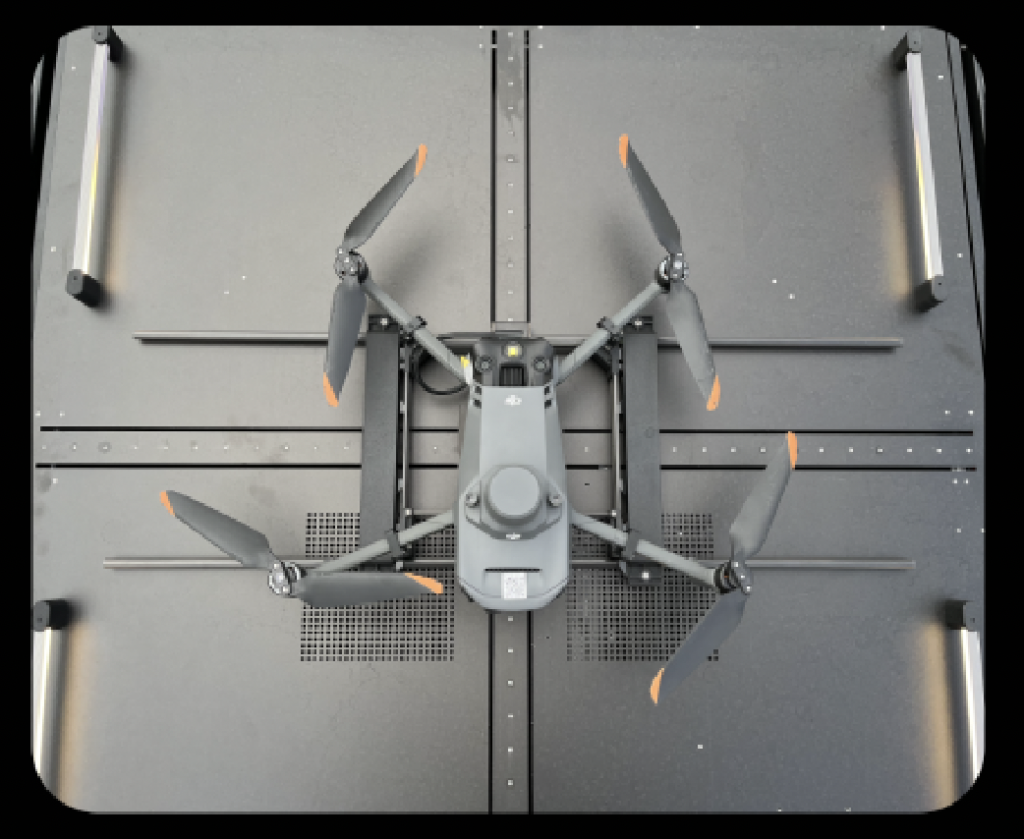

HEISHA DNEST5 is an industrial-grade drone automatic flight solution suitable for multiple scenarios. It integrates flight control software and drone charging dock hardware. It is standard adapted to drone model DJI M3E (RTK alive).
The standard version is adapted to the DJI Mavic 3E and the D80 dock hardware contains remote automatic takeoff and landing and one-key return function.
The software part supports pointing flights, remote waypoint flights, and real-time drone video streaming.
DNEST 5 is widely compatible with 2s-4s LiPo drones.
It supports local WLAN connection control, large screen access via online remote control, and mobile APP control.
Immersive experience DNEST5
Superb performanse
5-year upgrade, easy deployment
Safe, stable, high-efficiency

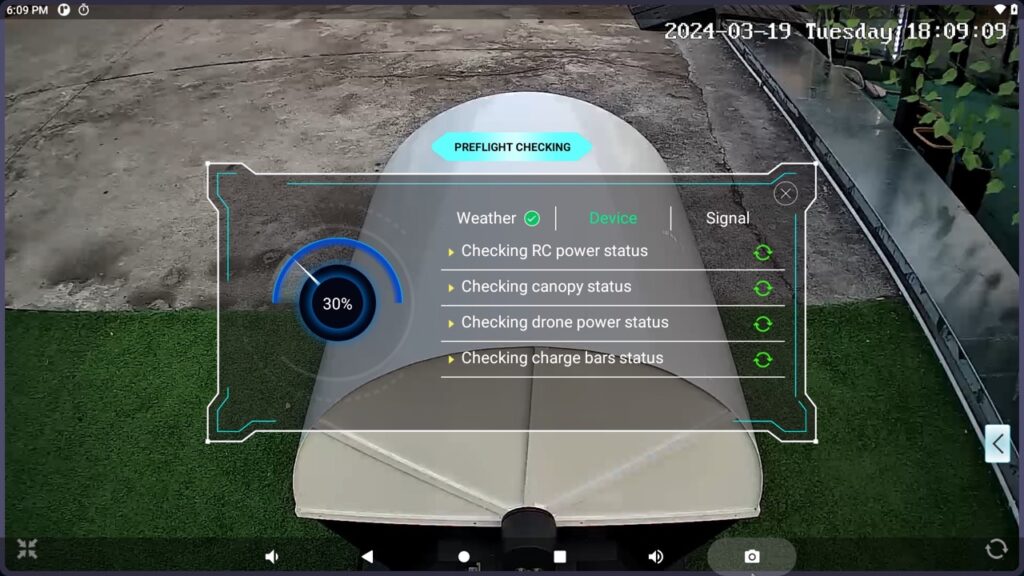

Pre-flight checking
HEISHA’s fifth-generation drone dock, the Dnest 5 software system combines the T3 weather station. It integrates real-time weather conditions (temperature, humidity, wind speed, rainfall, etc.) to determine if flight conditions are safe to fly, avoiding damage to the dock and drone due to unsuitable weather conditions for takeoff.

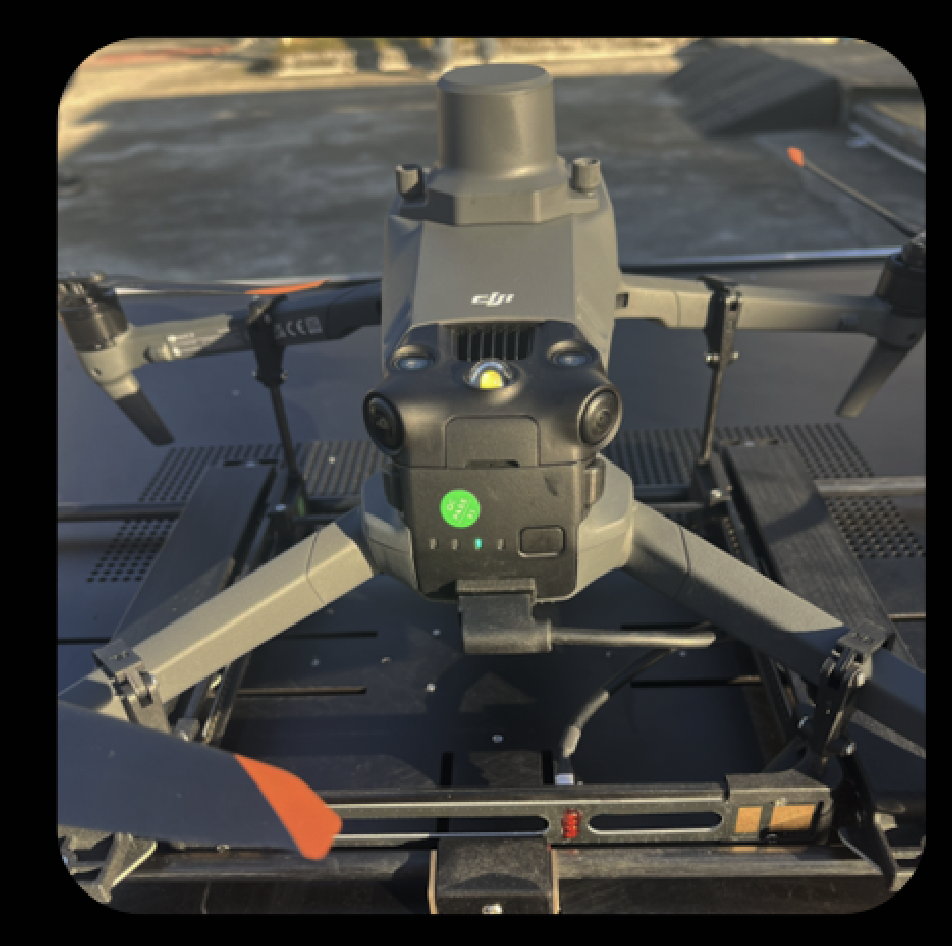

Fast charging
DNEST5 drone dock system can quickly charge drones that charge from 20% to 90% in just 25 minutes. At the same time, it adopts multiple charging protections such as overcharge, overvoltage, and anti-backflow.
It can help to efficiently and continuously operate in remote areas.

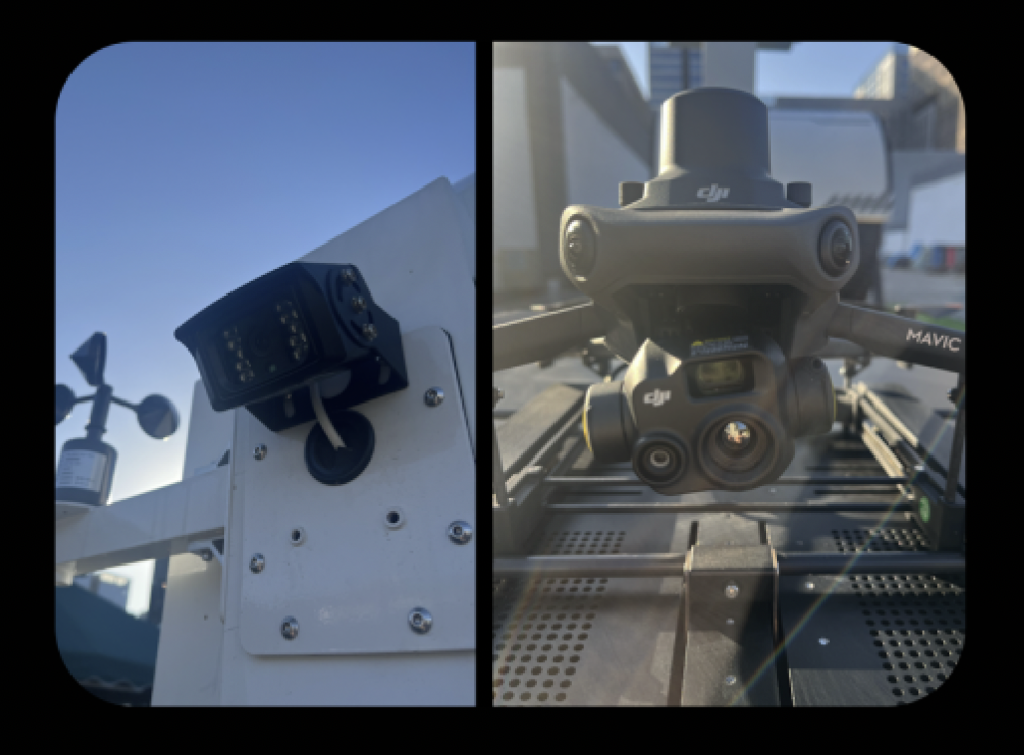

Dual monitor
The drone camera inside the dock and the extra monitoring camera at the T3 weather station outside monitor the environmental conditions inside and outside the dock in real-time, assisting the operators in remotely observing the weather conditions, the site environment, drone takeoff and landing conditions, etc.

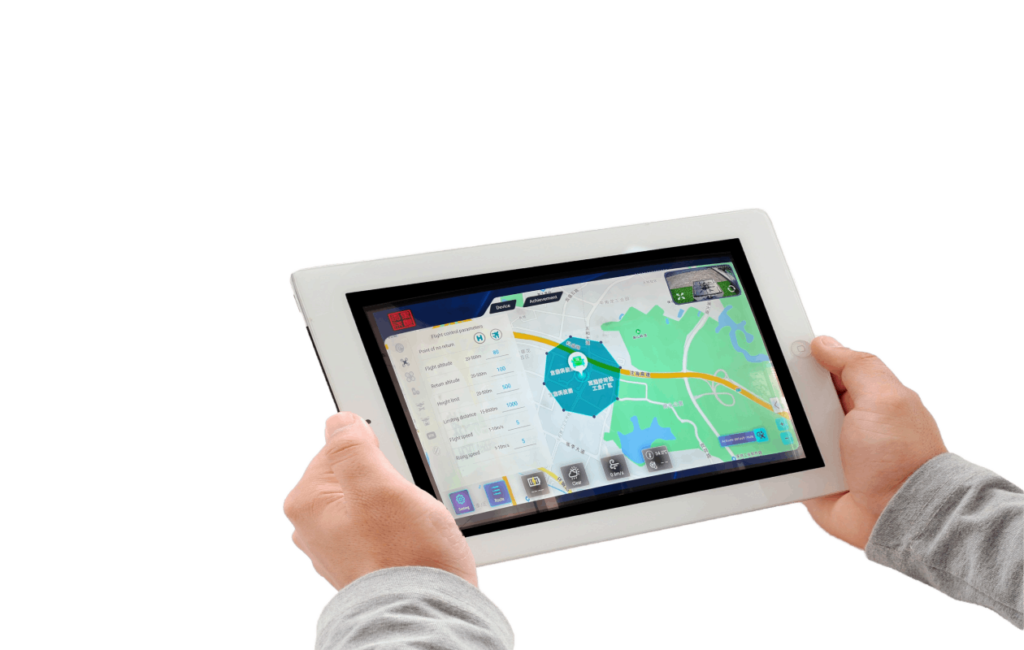

Local/ Tablet/ Large monitor connection
YOUR CALL!
Local + tablet

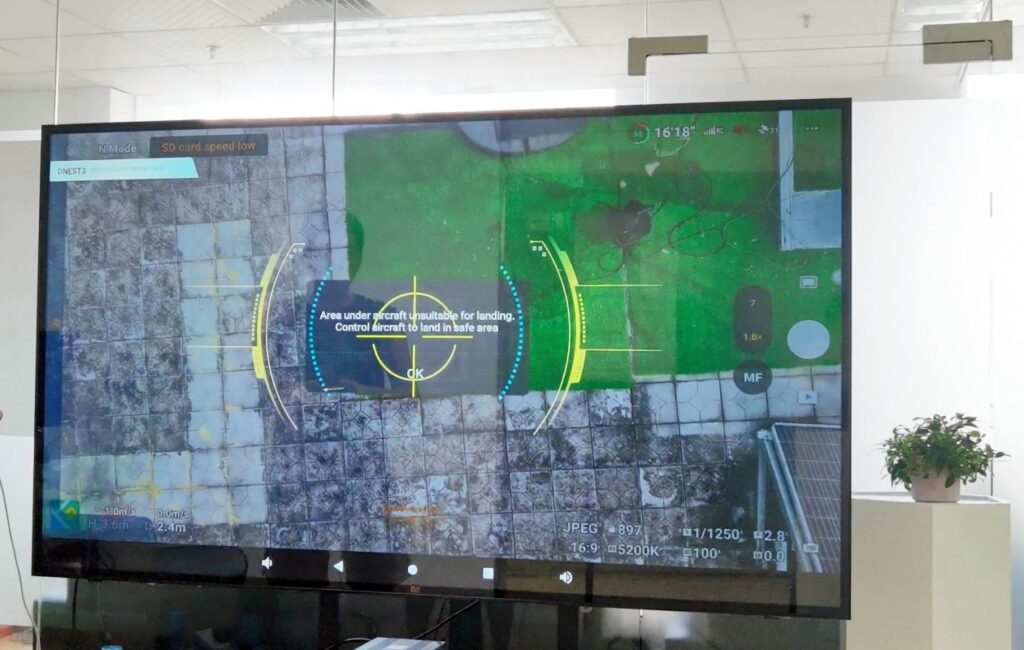

Remote + large monitor
Remote + tablet

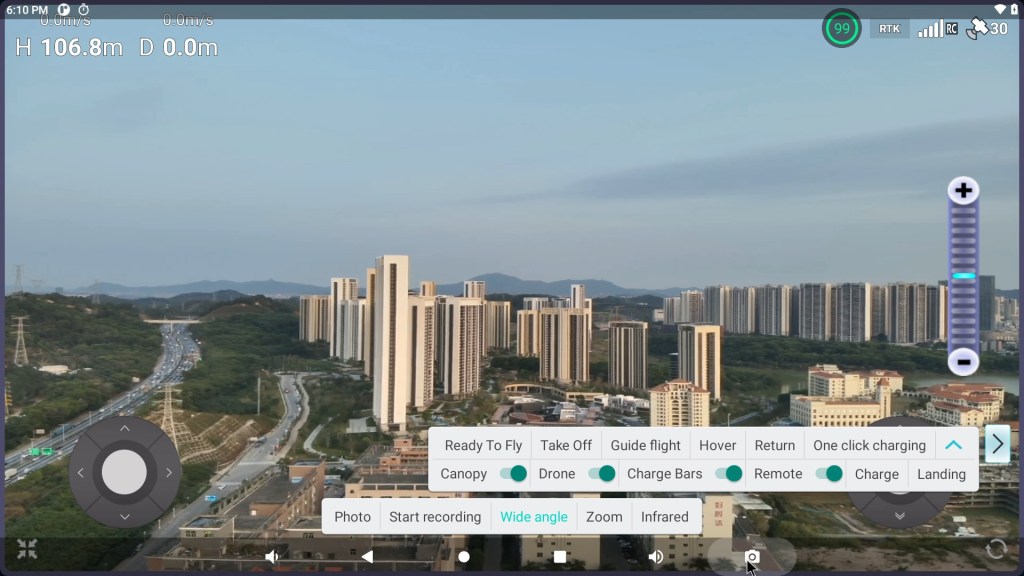

Even if the dock is deployed in a remote location, it is still possible to remotely control the flight behavior of the drone, adjust the angle of the gimbal, and shoot back real-time videos and images during the mission.
Separately check the weather, dock equipment and signal conditions for safe flights. And give timely flight warnings in case of abnormal status.

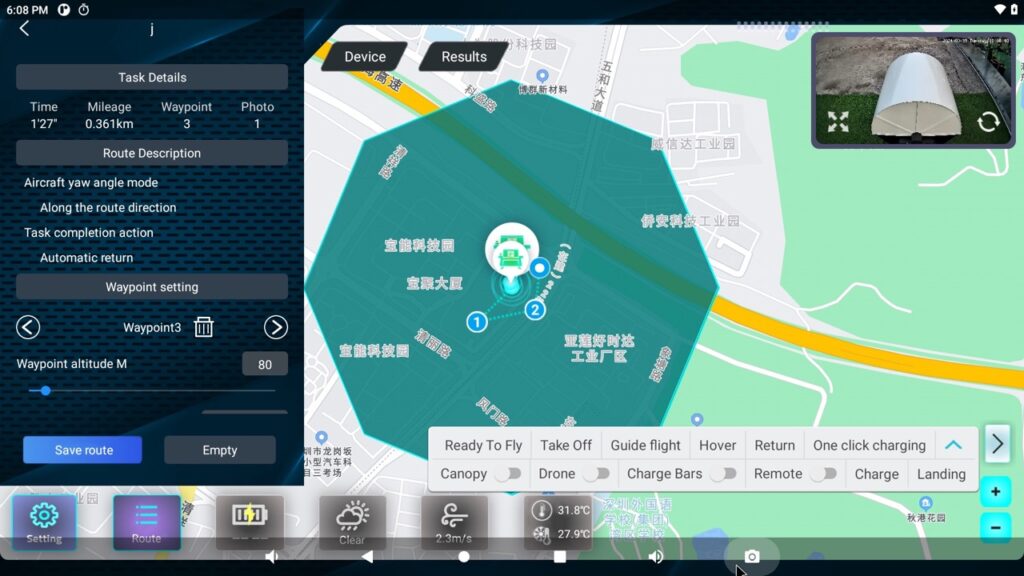

The drone can perform remote automatic flight tasks according to pre-set waypoints, and after the task is completed, it can return to the flight with one key, which greatly reduces the difficulty of flight.

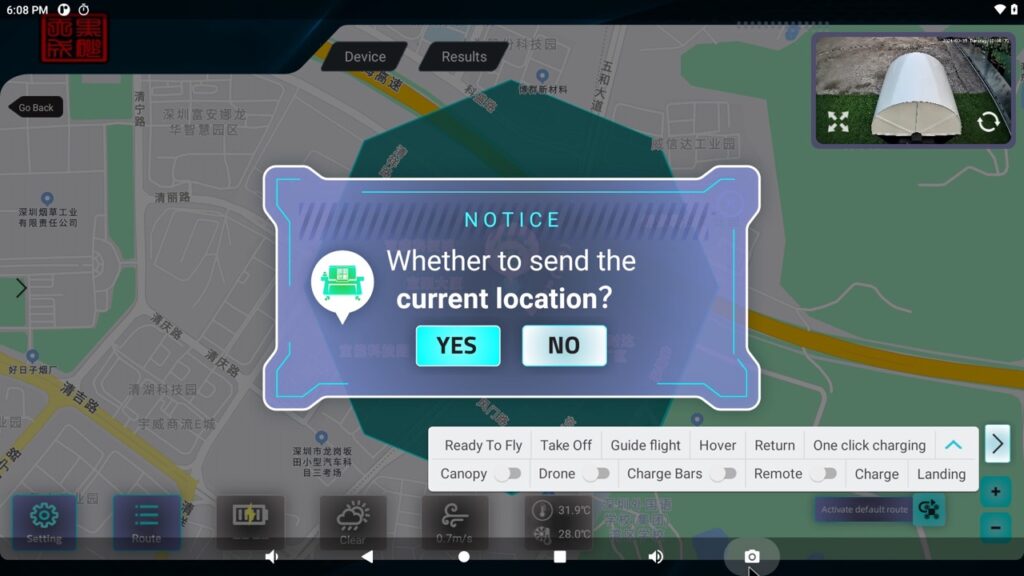

When carrying out urgent tasks, you can directly click on the destination and the drone will instantly fly to the target point, responding to unexpected emergency tasks in the quickest and most efficient way.

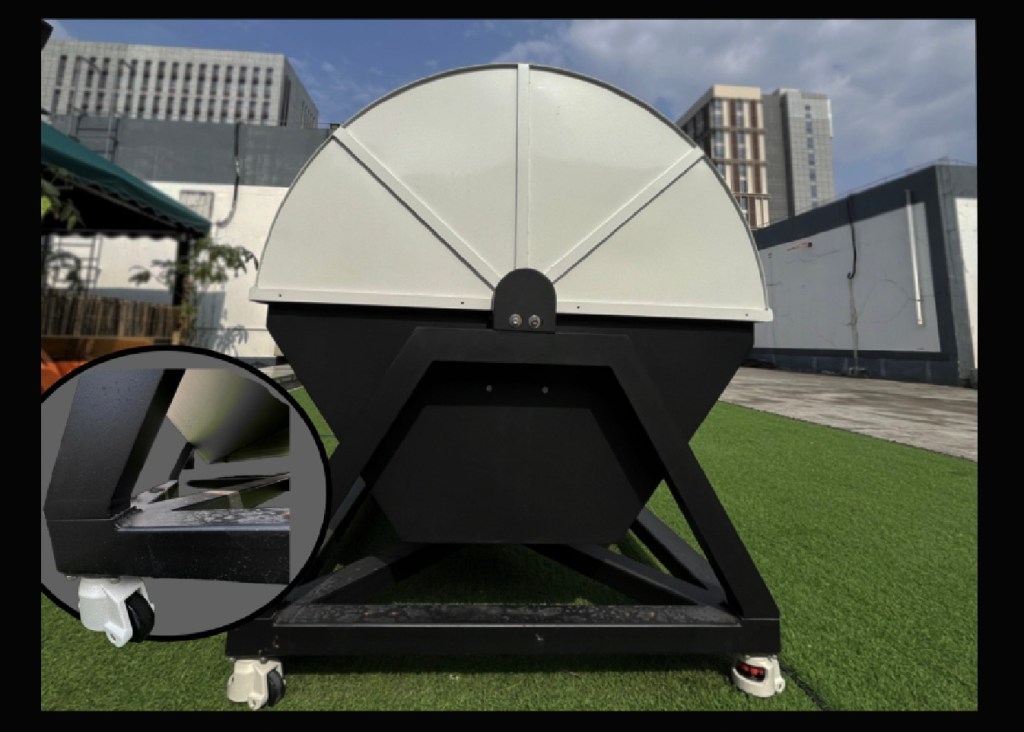

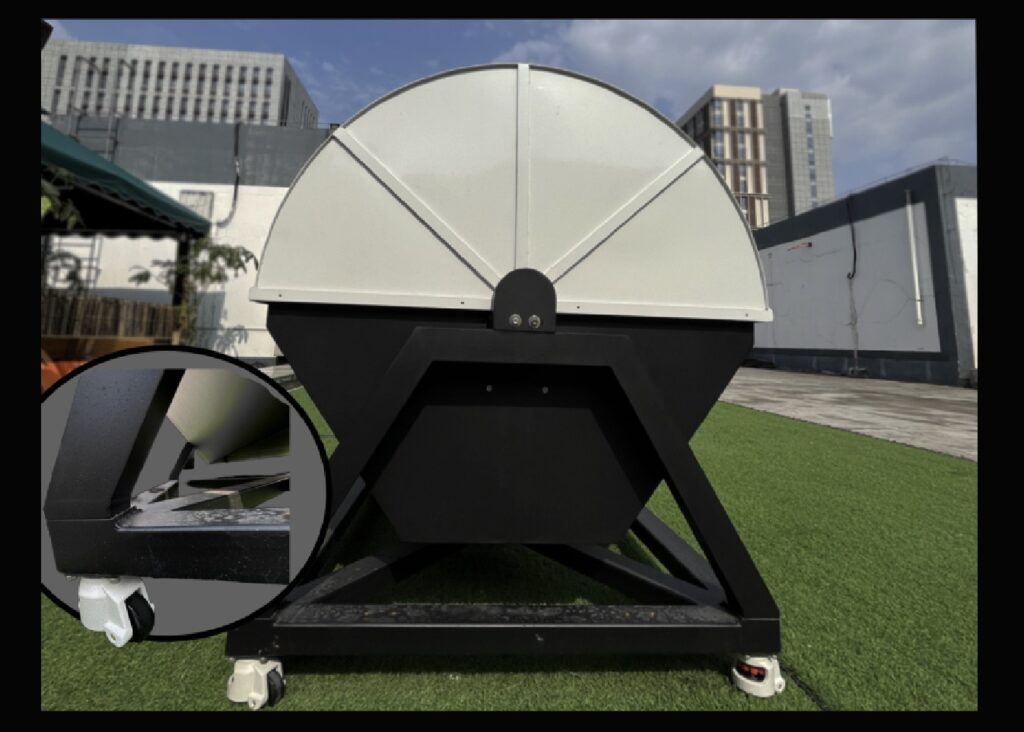

Wheel design, easy deployment
Rolling wheel design directly refers to the handling problems on the way to deployment, the outer box of the package comes with an auxiliary skateboard, and from unpacking to deployment, can be completed by a single person, greatly reducing the difficulty of deployment and reducing the number of personnel involved in the deployment.
Smart sensor system
The dock integrates with sensors such as wind anemometer, rain gauge, temperature, humidity, etc., transmits weather data in real time, conducts pre-flight safety checks, and warns or aborts risky flight missions in time through the software to efficiently minimize the risk of flights.

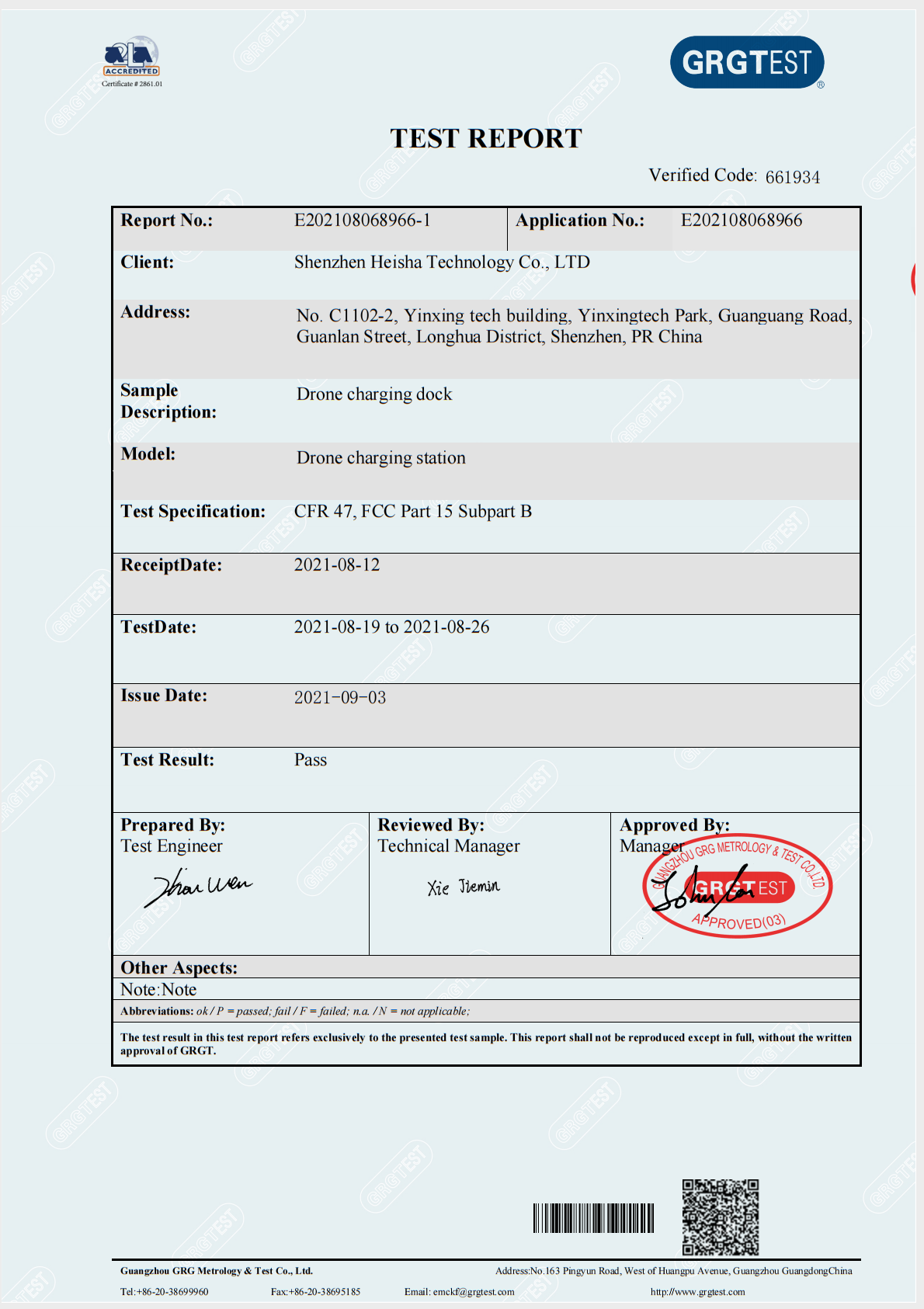

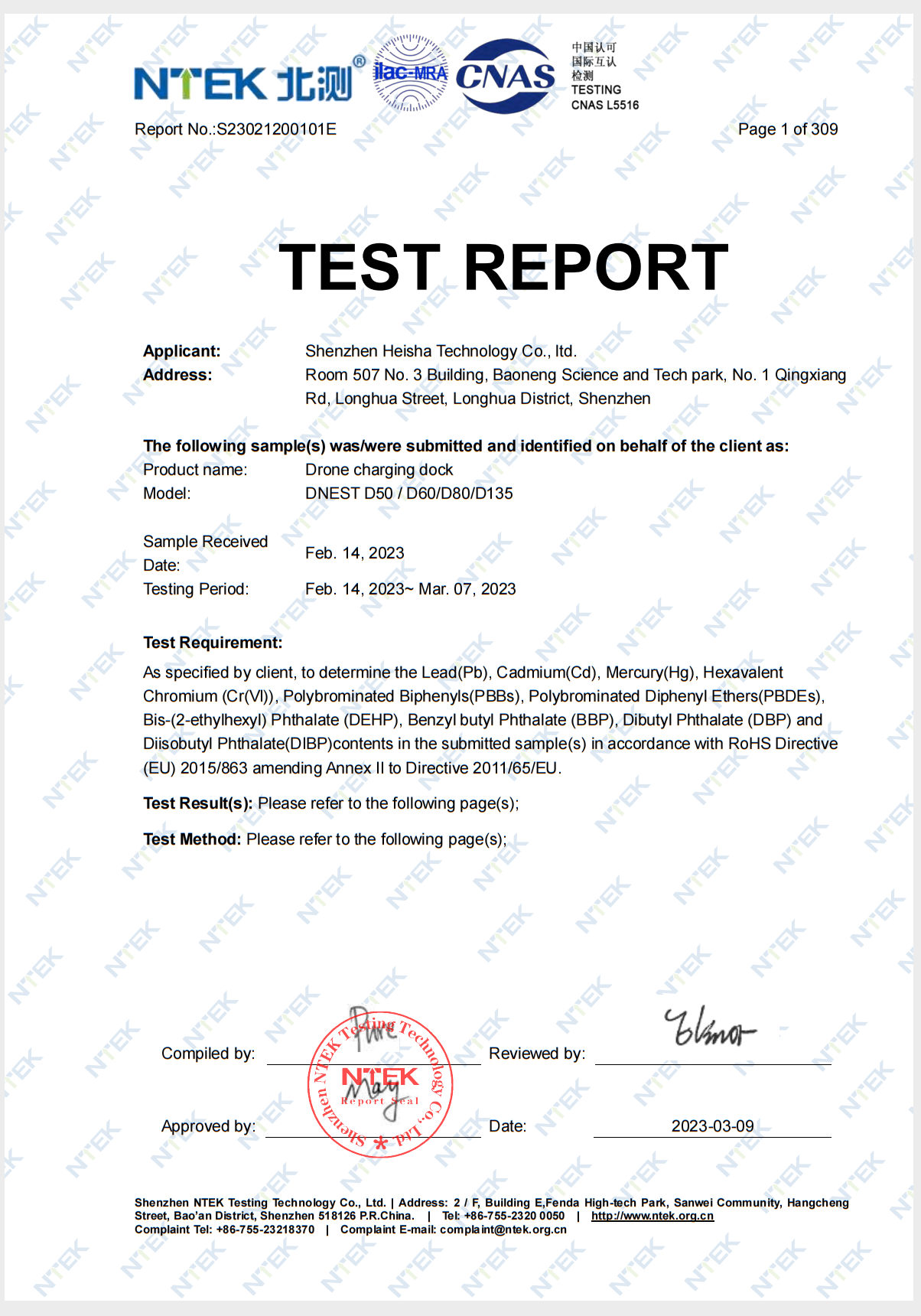

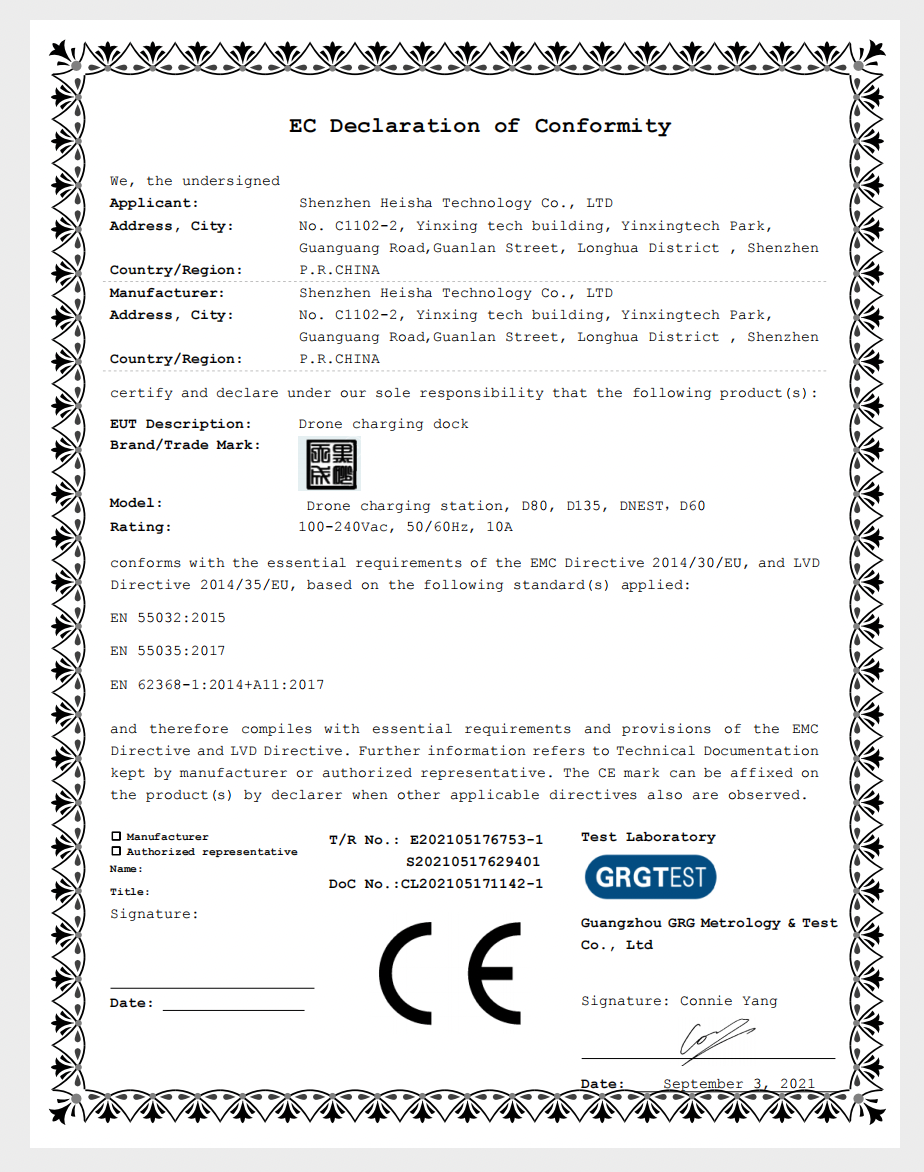

Certificates & Patents
Question list:
1. Why is HEISHA priced this way for this release?
The price has really come down a lot this time, ¥29,800 for the entire hardware and software package.
It’s mainly due to competition
2. This release is launching a complete solution, does HEISHA still provide parts for the integrator?
Of course, HEISHA’s main business is to build mansions for robots, it’s never changed.
More than 50% of our business is to provide parts for various types of drones and robots.
3. Why are you willing to disclose the price for this release?
Because most of our small dock integrators have disappeared, we don’t have to protect anyone’s margin now.
So we disclose the price.
4. What does the free software server deployment mean?
It means we don’t want to charge anything for the software, but we will not provide broadband.
Customers need to rent their own broadband and server, and then we will provide the server deployment guide file.
5. There is no policy on agent discounts, so how to ensure agents’ interests?
Agents are now charging extra for their services to cover their costs.
Such as installation and training fees, the market’s pricing policy has changed.
6. Do customers need to pay again for future software upgrades?
No, because we have already deployed the private server for free. So there is no need to pay again.
If in the future you need to develop some additional functions, there may be additional charges.
Normal upgrades do not charge.
Question list:
1. What’s the difference between the HEISHA DNEST5 and DJ’s DOCK2, and what kind of scenarios are they suited for?
Firstly, we’re all doing pretty much the same on something
For example, price and stability.
DJI has upgraded to the second generation, and we’ve upgraded to the fifth generation.
DJI has the world’s best R&D team and resources, while HEISHA dock’s interaction with the market is very close.
2. Can I use other manufacturers’ drones or software with my DNEST5?
If you need to use your own software or your own drone, we can do that as well.
But it’s not part of the standard product, we can customize it
3. You emphasize the local server many times, why put it as a key feature?
The first need is for a private scenario.
There are some customers, such as his manor, ranch, or island, who don’t want to send any data to the cloud.
The second need is for the car.
Now in many countries, it’s difficult to apply for a BVLOS flight, but it’s possible to operate a drone from inside a car. It can be used for this kind of local server.

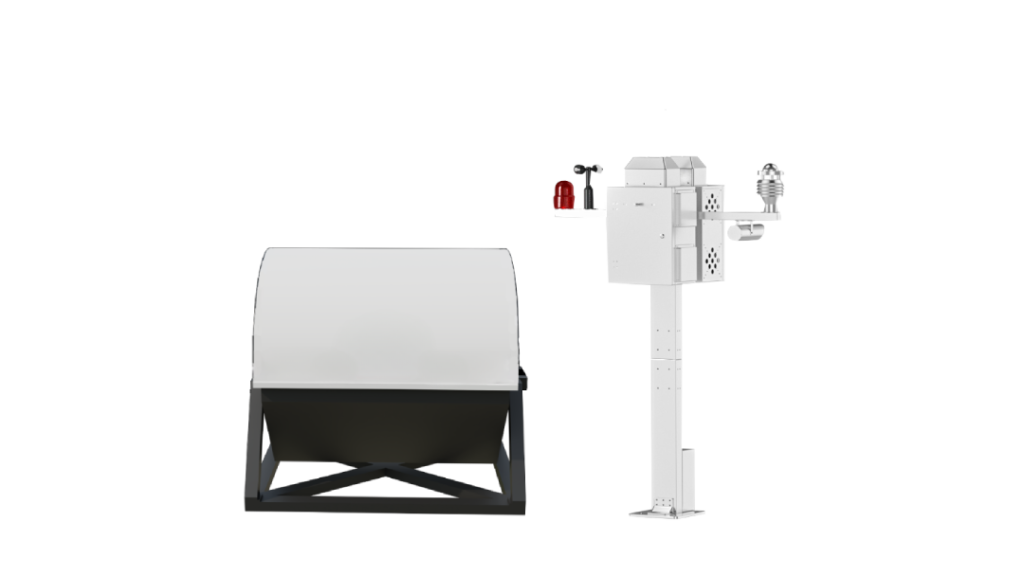

4. Why still choose D80 and T3 for the structure?

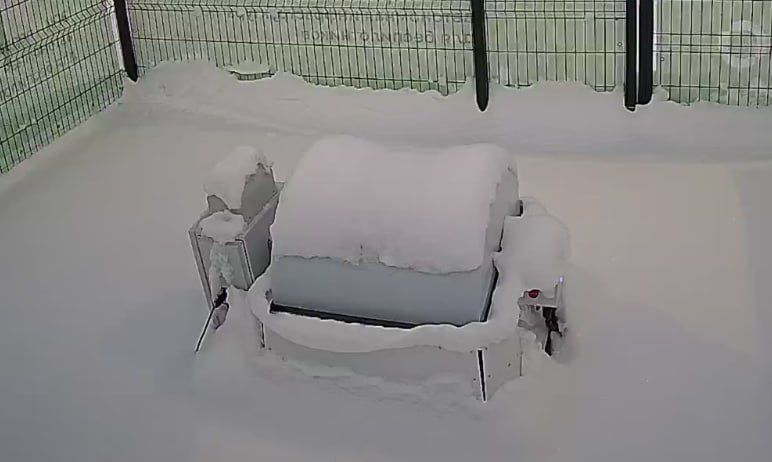

This canopy structure works in very cold weather, Even in a heavy snowfall.
That’s why we still believe in the canopy.
When the dock was mounted on the tower, T3 could be placed on the ground separately, the maintenance workload would be reduced by 70%.
In addition, when installed on the roof of a building, T3 can be placed separately where the signal is better, it allows the drone to fly further.
5. ID has not changed in years, will you consider beautifying it in the future?
We will definitely put a new look on DNEST6, we hope to have a very impressive appearance this time.
Core components
Hardware
- IP55 drone dock
- Edge computer 1 for a dock system
- Edge computer 2 for local server
- Configuration documentation
- One-year warranty

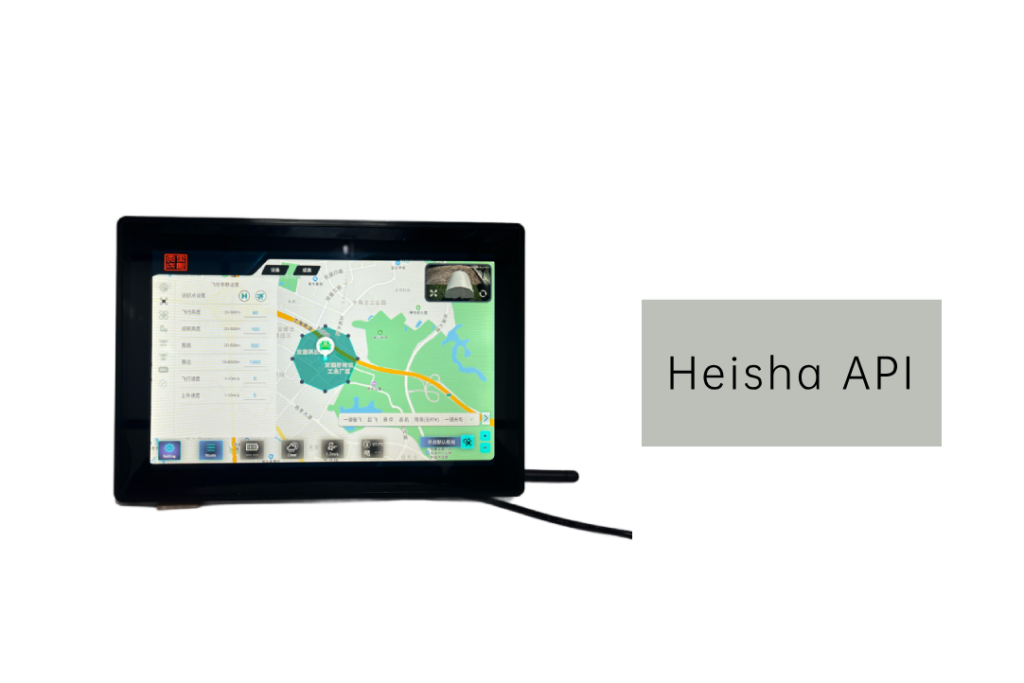

Software

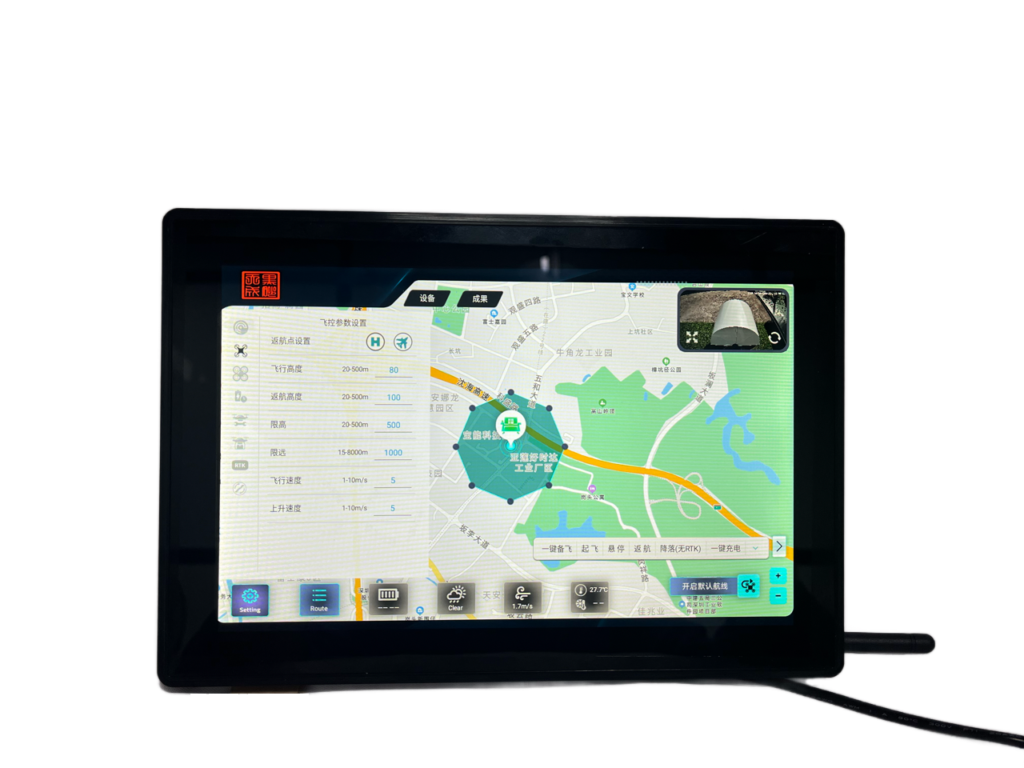

- Tablet
- Heisha API
Question list:
1. The software release looks to be missing some features like AI data analysis, what are the future plans for the software?
So the plan for the future, we’re not going to develop AI-related functions. For example, modeling, and deep AI analysis, we will only optimize our API, and let our partners or customers’ partners do it
2. How to become an exclusive distributor of HEISHA?
In some countries, there is no exclusive agent yet, the terms of our exclusivity are very simple: Depending on the size of your country and the market, you need to place a first order, it is usually just a few sets. After the order is placed, we will give you free training and a certificate, then you can be our exclusive agent.
3. Is HEISHA considering doing some non-profitable project? Or pure research projects?
Yes, we do collaborate on some non-profit research topics, we do it every year, some are with universities, and some are with the research departments of large enterprises.
4. Are you confident in competing with DJI?
Our products are also differentiated, Heisha has our characteristics.
In any market, it is bad if there is only one player
Heisha is another player to contributes creativity and increases the vitality of this industry. Especially in the future, docks will become new infrastructure, nobody wants their network equipment all from one company, and operators will diversify and reduce risks.
Main hardware specifications
| Weight | 140kg（include D80 andT3） |
| Close size | 1070*800*1020 mm |
| Package size | 1370*1280*1300 mm |
| Material | Aluminum alloy, sheet metal |
| Input voltage | AC100~220V |
| Max. charging current | 6A |
| Voltage | 600 W |
| IP rate | IP55 |
| Charging time | 40 Mins ( for Mavic3 enterprise) |
| Working environment | -20 ℃~55℃ |
| Light strip | Four strips for landing at night |
| Charging protection | Over-voltage, over-current, anti-reverse |

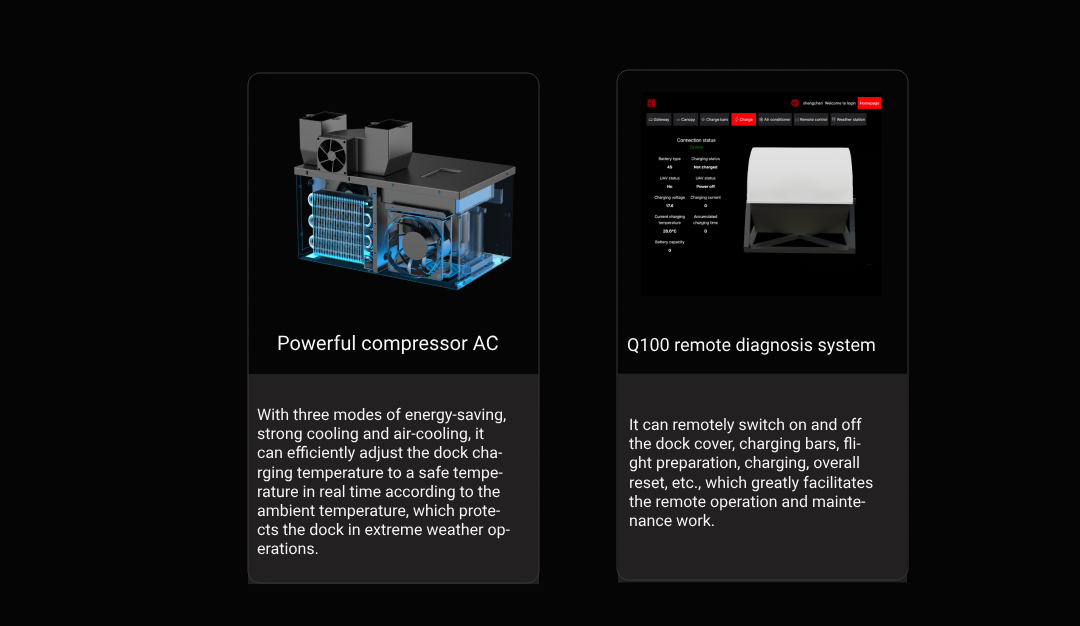

| Air conditioner | Voltage: AC100~240V Type: compressor |
| Sensors | Windspeed, rain gauge, temperature, humidity |
| Support extending protocol | MQTT/MODBUS RTU |
Packing list
| DNEST5 $4,880 | DNEST5 Pro $22,937 |
|---|---|
| Software | |
| HSPilot Software | HSPilot Software |
| BotBay mesh network software | |
| BTS private deployment | |
| Hardware | |
| DPad80 charging board | DPad80 charging board |
| Edge computer | Edge computer |
| A100 air conditioner | AI edge computing box |
| D80 drone dock | A100 air conditioner |
| Landing gear of Mavic3 E | D80 drone dock |
| Drone battery of Mavic3 E | Landing gear of Mavic3 E |
| RC Base | Drone battery of Mavic3 E |
| RC Base | |
| T3 weather station | |
| T3 fixing frame | |
| Landing gear of M30 | |
| Charging module of M30 | |
| Propeller withdraws module of M30 | |
| Propeller withdraws module of M30 | |
| UPS | |
| Solar power management system | |
| Solar panels | |
| Starlink Extension Port | |
| Local server | |
| GNSS mobile RTK station | |
| Documents | |
| API Doc | API Doc |
| Local server deployment guide | Local server deployment guide |
| Configure doc | Configure doc |
Certified service provider
Server deployment, site survey and initial installation, flight permit application, flight route setting, maintenance, and training
Lead time
3 days for in stock, 45 days for new products
Price note
Tax, shipping fees, optional accessories, service, and customs clearance fees are excluded
Production capacity
200 sets/month
